BW Series

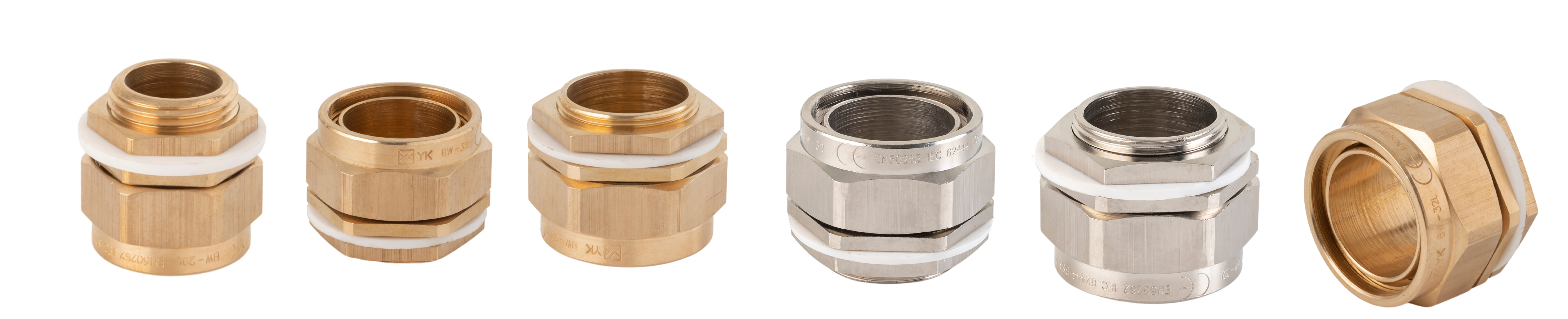

BW Industrial Cable Gland
BW 4 Part type brass indoor cable gland for use with all types of Single Steel Wire Armour (SWA) cable providing mechanical cable retention and electrical continuity via armour wire termination.
Key Features
BW series is a 4 Part type industrial cable gland to be used with all types of single steel wire
armoured (SWA) and aluminium wire armoured (AWA) cables.
The main function is to terminate the cable armour thereby giving mechanical cable retention and
electrical continuity via armour wire termination, with ingress protection rating of IP30. To create a
low impendence earth termination an earth wire is fixed onto an earth tag.
Design Standard: BS 6121: Part1:2005
Usage: Indoor applications
Entry Threads: M20 to M90
Standard Gland Material: Brass & Brass Nickel Plated
Operating temperature: -20°C to +80°C
Accessories: Locknut, Earth Tag, IP Washer & Shroud
- Suitable For SWA Cables
- Suitable For AWA Cables
- Available In Kits Including Locknut, Earth Tag & Shroud
- Optional Threads – NPT, BSP & PG
- Optional – 3 Part Design
- Optional – LSF Kit

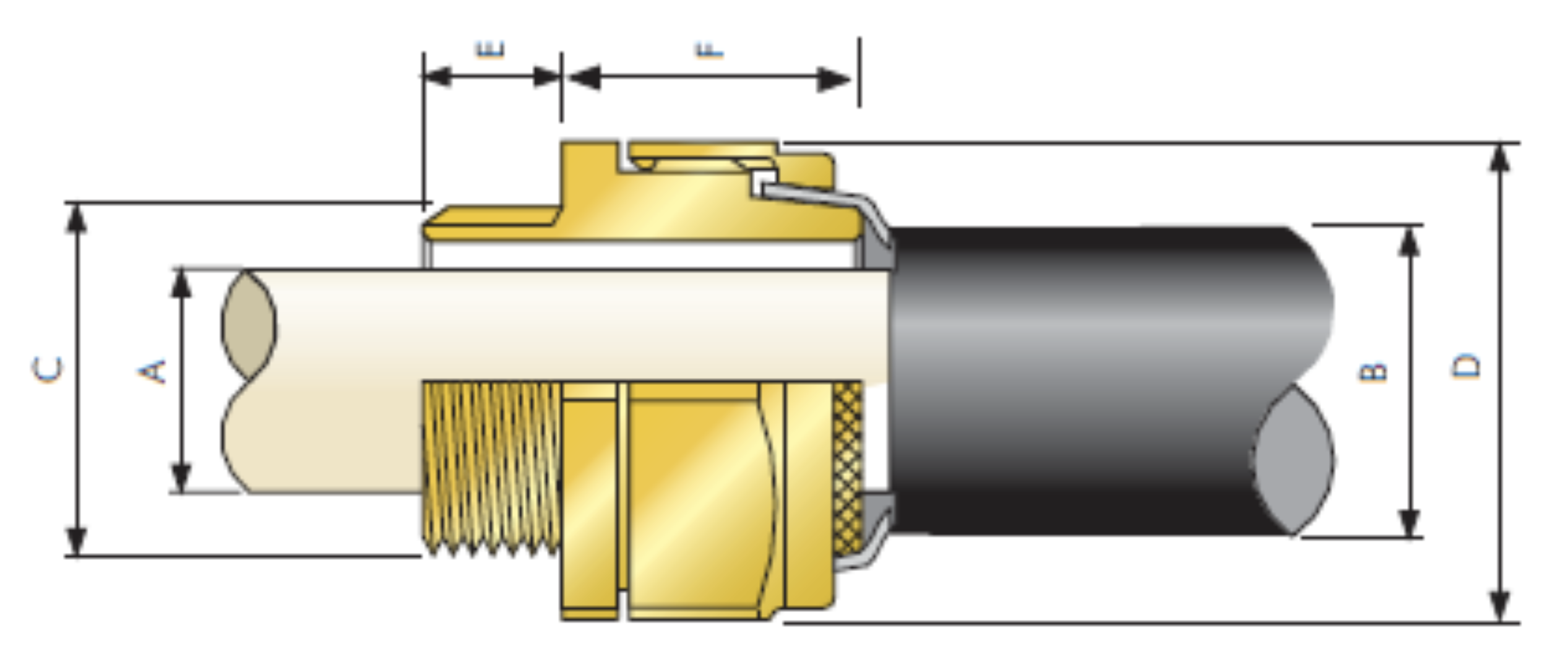

Technical Illustration
Product Selection Table
| Article # | Gland Size | Std. Entry Thread Size 'C' | Minimum Thread Length 'E' | Cable Bedding Diameter 'A' | Overall Cable Diameter 'B' | Armour Wire Dia. | Across Flats 'D' | Across Corners | Protrusion Length 'F' Approx. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Min. | Max. | |||||||||
| YK-B4-20S | 20S | M20 | 10.00 | 11.50 | 15.50 | 0.80 | 1.25 | 22.00 | 24.50 | 18.50 |
| YK-B4-20L | 20L | M20 | 10.00 | 14.00 | 20.50 | 0.80 | 1.25 | 25.00 | 28.00 | 22.50 |
| YK-B4-25S | 25S | M25 | 10.00 | 18.00 | 24.00 | 1.25 | 1.60 | 30.00 | 34.00 | 26.00 |
| YK-B4-25L | 25L | M25 | 10.00 | 20.00 | 27.20 | 1.25 | 1.60 | 31.50 | 34.50 | 26.00 |
| YK-B4-32S | 32S | M32 | 10.00 | 26.30 | 33.50 | 1.60 | 2.00 | 40.50 | 45.00 | 28.00 |
| YK-B4-32L | 32L | M32 | 10.00 | 26.30 | 33.50 | 1.60 | 2.00 | 40.50 | 45.00 | 28.00 |
| YK-B4-40S | 40S | M40 | 13.00 | 31.50 | 39.50 | 1.60 | 2.00 | 45.50 | 50.50 | 28.00 |
| YK-B4-40L | 40L | M40 | 13.00 | 32.00 | 40.00 | 1.60 | 2.00 | 48.00 | 53.00 | 28.00 |
| YK-B4-50S | 50S | M50 | 13.00 | 38.20 | 46.30 | 2.00 | 2.50 | 56.50 | 63.00 | 28.00 |
| YK-B4-50L | 50L | M50 | 13.00 | 44.00 | 52.60 | 2.00 | 2.50 | 62.00 | 69.50 | 30.00 |
| YK-B4-63S | 63S | M63 | 14.00 | 50.10 | 59.00 | 2.00 | 2.50 | 68.50 | 77.00 | 38.00 |
| YK-B4-63L | 63L | M63 | 14.00 | 56.00 | 65.30 | 2.00 | 2.50 | 76.00 | 86.00 | 38.00 |
| YK-B4-75S | 75S | M75 | 15.00 | 62.00 | 71.60 | 2.00 | 2.50 | 83.00 | 94.00 | 40.00 |
| YK-B4-75L | 75L | M75 | 15.00 | 68.00 | 78.00 | 2.50 | 3.00 | 90.00 | 101.00 | 40.00 |
| YK-B4-90S | 90S | M90 | 18.00 | 80.50 | 91.00 | 3.15 | 4.00 | 103.50 | 114.00 | 46.00 |
| YK-B4-90L | 90L | M90 | 18.00 | 80.50 | 91.00 | 3.15 | 4.00 | 103.50 | 114.00 | 46.00 |
Applications
- Control Panels
- Switchgear
- Industrial & Commercial Buildings
- Power Distribution Boards
