Defender Series

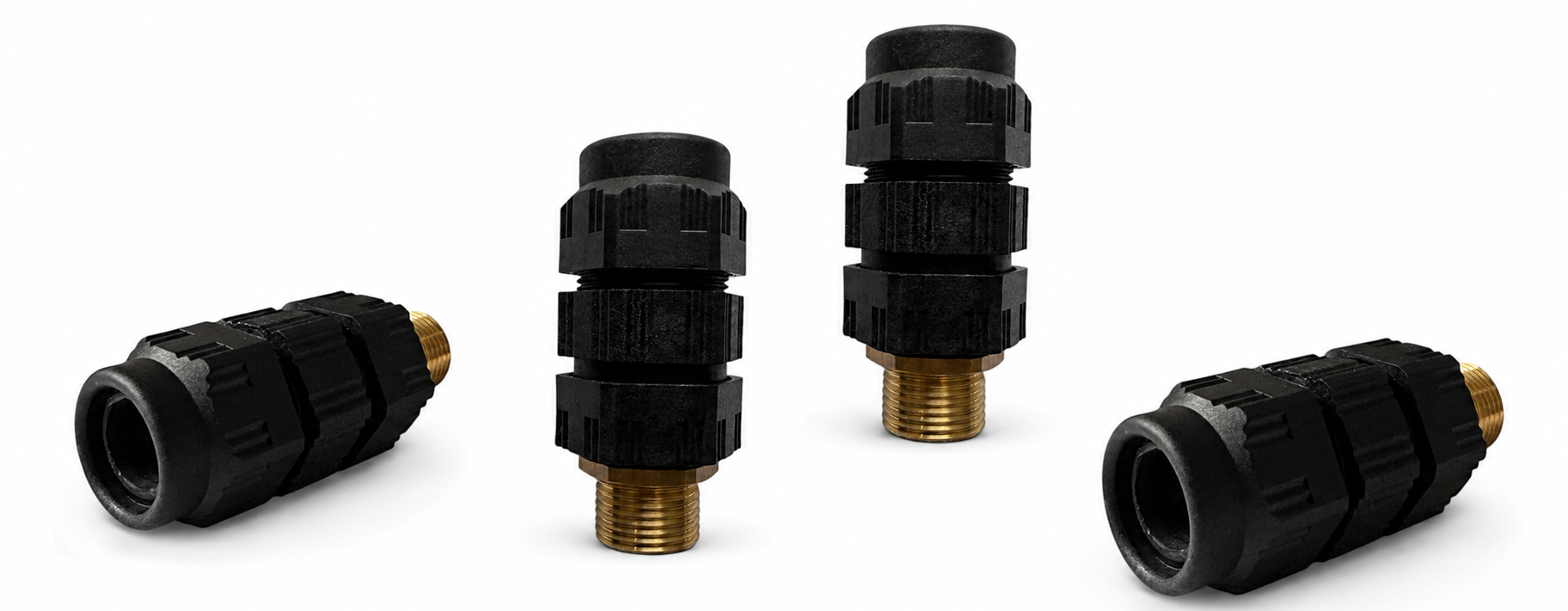

Defender Series Industrial Glands
Defender series is a corrosion proof cable gland with unique gland material composition to metal as brass nickel-plated brass and PA 6. The gland inherits a high-quality strain relief and reliable sealing performance for wet area applications, eliminating the requirement of the shroud. The metal armour clamping ring and the body ensures the earth continuity.
Key Features
Defender series is a corrosion resistant gland with hybrid composition of halogen free materials -
brass and polyamide PA 6, suitable for single steel wire armoured (SWA) and aluminium wire
armoured (AWA) cables.
Design Standard: IEC 62444: 2013, EN 50262, IP 68
Usage: Outdoor & wet applications
Entry Threads: M20 to M40
Standard Gland Material: Brass Nickel Plated & PA 6 combine
Operating temperature: -20°C to +80°C
Accessories: Locknut & Earth Tag
- Suitable For SWA & AWA Cables
- Suitable For Wet Area
- Halogen-Free Material
- No Necessity Of Shroud
- Available In Kit Form
- Optional Threads – NPT & BSP

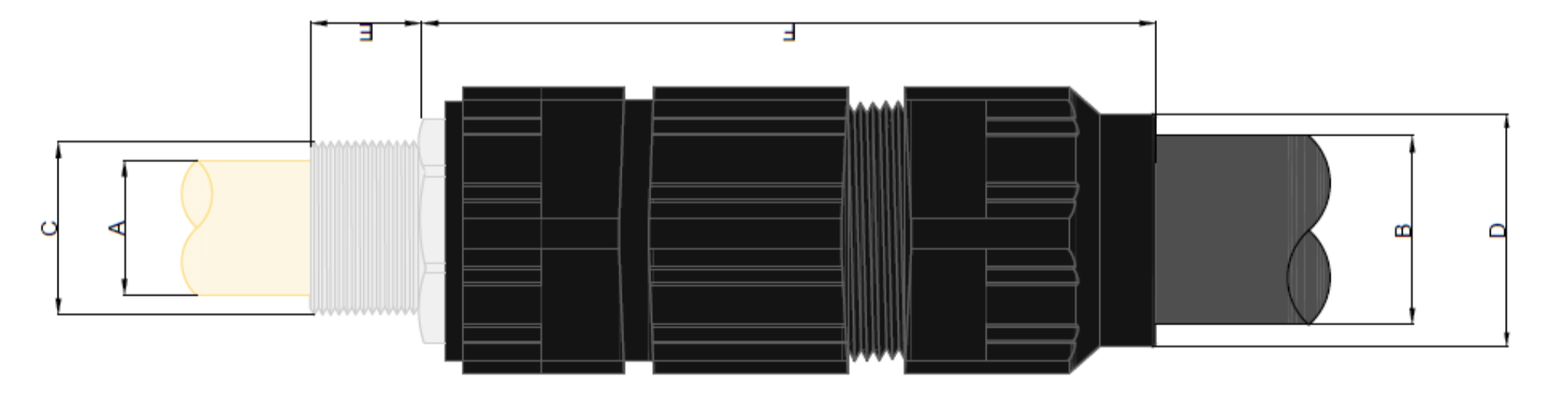

Technical Illustration
Product Selection Table
| Article # | Gland Size | Std. Entry Thread Size 'C' | Minimum Thread Length 'E' | Cable Bedding Diameter 'A' Max. |
Overall Cable Diameter 'B' | Armour Wire Dia. | Across Flats 'D' | Across Corners | Protrusion Length 'F' Approx. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Min. | Max. | Min. | Max. | ||||||||
| YK-CR-20S | 20S | M20 | 17.00 | 12.00 | 10.50 | 16.00 | 0.90 | 1.25 | 27.00 | 30.00 | 51.00 |
| YK-CR-20L | 20L | M20 | 17.00 | 16.00 | 15.50 | 21.00 | 0.90 | 1.25 | 32.00 | 35.50 | 51.00 |
| YK-CR-25 | 25 | M25 | 17.00 | 21.00 | 20.50 | 27.50 | 1.25 | 1.60 | 41.00 | 45.50 | 61.00 |
| YK-CR-32 | 32 | M32 | 17.00 | 28.00 | 27.00 | 35.00 | 1.60 | 2.00 | 50.00 | 55.50 | 71.00 |
| YK-CR-40 | 40 | M40 | 22.00 | 34.00 | 33.00 | 41.00 | 1.60 | 2.00 | 58.00 | 63.00 | 73.00 |
Applications
- Marine & Offshore
- Landscape
- Infrastructure
- Utilities
