CW Series

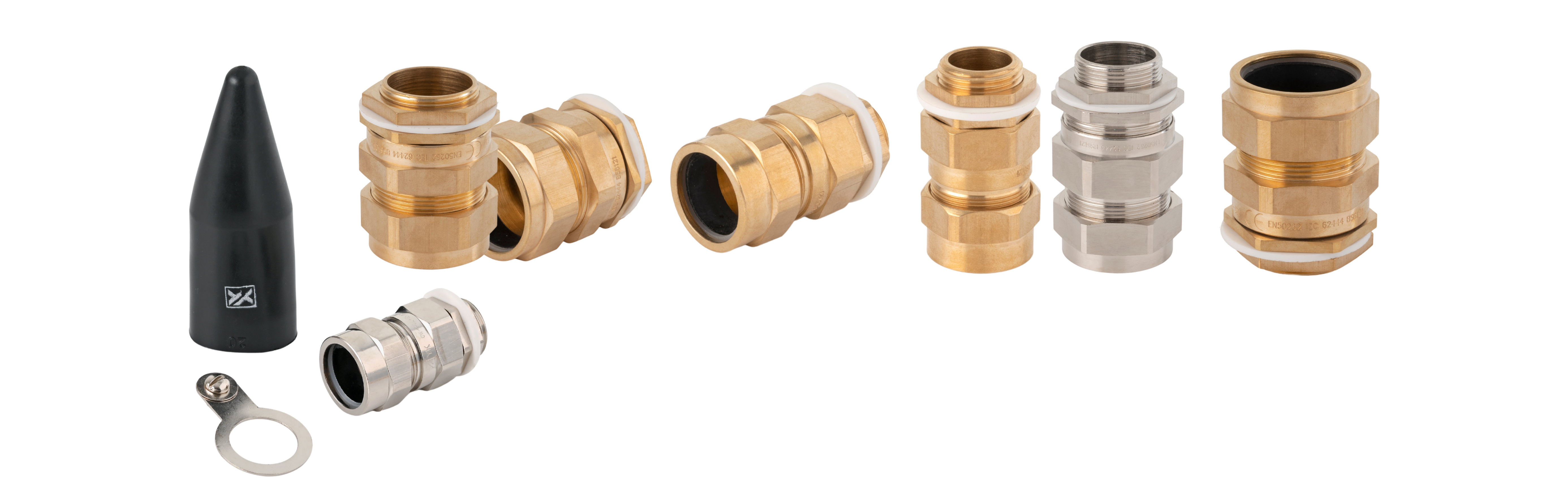

CW Series Industrial Glands
CW 4 Part type brass indoor and outdoor cable gland for use with all types of Single Steel Wire Armour (SWA) and Aluminium Wire Armour (AWA) cable providing mechanical cable retention and electrical continuity via armour wire termination.
Key Features
BW series is a 4 Part type industrial cable gland to be used with all types of single steel wire
armoured (SWA) and aluminium wire armoured (AWA) cables.
The main function is to terminate the cable armour thereby giving mechanical cable retention and
electrical continuity via armour wire termination, with ingress protection rating of IP30. To create a
low impendence earth termination an earth wire is fixed onto an earth tag.
Design Standard: BS 6121: Part1:1989, EN 50262, IEC 62444
Usage: Indoor and outdoor applications
Entry Threads: M20 to M90
Standard Gland Material: Brass, Brass Nickel Plated & Aluminium
Operating temperature: -20°C to +80°C
Accessories: Locknut, Earth Tag, IP Washer & Shroud
- Suitable For SWA Cables
- Suitable For AWA Cables
- Available In Kit Form
- Optional Threads – NPT, BSP & PG
- Optional Gland Material – Al & SS
- Optional – LSF Kit

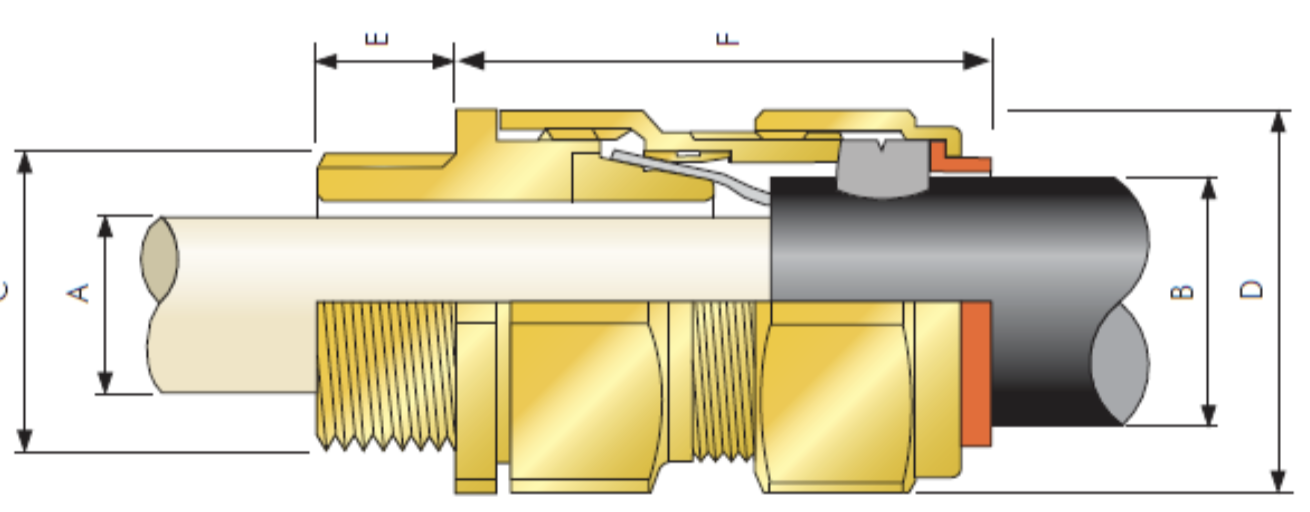

Technical Illustration
Product Selection Table
| Article # | Gland Size | Std. Entry Thread Size 'C' | Minimum Thread Length 'E' | Cable Bedding Diameter 'A' Max. |
Overall Cable Diameter 'B' | Armour Wire Dia. | Across Flats 'D' | Across Corners | Protrusion Length 'F' Approx. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Min. | Max. | Min. | Max. | ||||||||
| YK-C4-20S | 20S | M20 | 10.00 | 11.50 | 9.50 | 15.50 | 0.80 | 1.25 | 22.00 | 24.50 | 48.00 |
| YK-C4-20L | 20L | M20 | 10.00 | 14.00 | 12.50 | 20.50 | 0.80 | 1.25 | 26.00 | 28.50 | 48.00 |
| YK-C4-25S | 25S | M25 | 10.00 | 18.00 | 15.00 | 24.00 | 1.25 | 1.60 | 30.50 | 35.00 | 56.00 |
| YK-C4-25L | 25L | M25 | 10.00 | 20.00 | 18.20 | 27.20 | 1.25 | 1.60 | 38.00 | 38.50 | 56.00 |
| YK-C4-32S | 32S | M32 | 10.00 | 26.30 | 23.70 | 33.50 | 1.60 | 2.00 | 41.00 | 45.00 | 54.00 |
| YK-C4-32L | 32L | M32 | 10.00 | 26.30 | 23.70 | 33.50 | 1.60 | 2.00 | 41.00 | 45.00 | 54.00 |
| YK-C4-40S | 40S | M40 | 13.00 | 31.50 | 27.90 | 39.50 | 1.60 | 2.00 | 47.00 | 53.00 | 56.00 |
| YK-C4-40L | 40L | M40 | 13.00 | 32.00 | 27.90 | 40.00 | 1.60 | 2.00 | 49.00 | 55.00 | 56.00 |
| YK-C4-50S | 50S | M50 | 13.00 | 38.20 | 35.20 | 46.30 | 2.00 | 2.50 | 57.50 | 64.50 | 59.00 |
| YK-C4-50L | 50L | M50 | 13.00 | 44.00 | 40.40 | 52.60 | 2.00 | 2.50 | 62.50 | 69.50 | 58.00 |
| YK-C4-63S | 63S | M63 | 14.00 | 50.10 | 45.60 | 59.00 | 2.00 | 2.50 | 73.00 | 81.00 | 73.00 |
| YK-C4-63L | 63L | M63 | 14.00 | 56.00 | 54.80 | 65.30 | 2.00 | 2.50 | 76.00 | 86.00 | 70.00 |
| YK-C4-75S | 75S | M75 | 15.00 | 62.00 | 59.20 | 71.60 | 2.00 | 2.50 | 84.50 | 96.00 | 86.00 |
| YK-C4-75L | 75L | M75 | 15.00 | 68.00 | 66.80 | 78.00 | 2.50 | 3.00 | 90.00 | 101.50 | 82.00 |
| YK-C4-90S | 90S | M90 | 20.50 | 80.50 | 76.40 | 91.00 | 3.15 | 4.00 | 103.50 | 115.00 | 91.50 |
| YK-C4-90L | 90L | M90 | 20.50 | 80.50 | 76.40 | 91.00 | 3.15 | 4.00 | 103.50 | 115.00 | 91.50 |
Applications
- Outdoor & Wet Environments
- Industrial & Commercial Power
- Mechanical Retention
- Earth Continuity
