A1/A2 Series

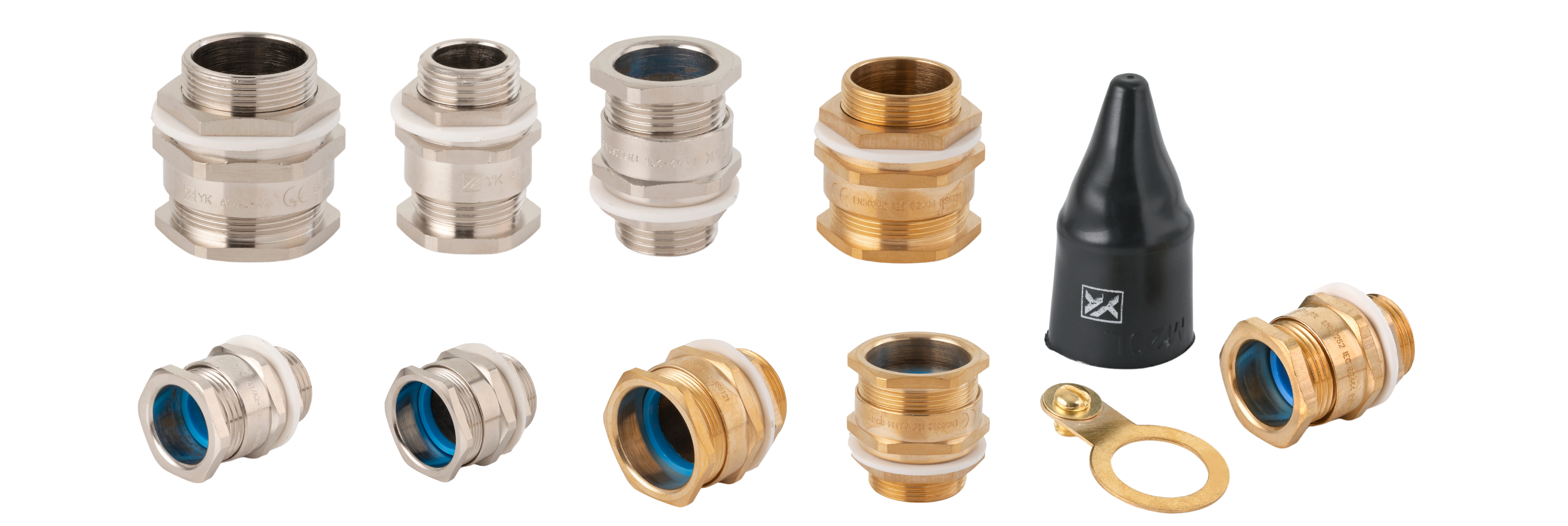

A1/A2 Type Brass Indoor & Outdoor Cable Gland
A1/A2 type brass indoor and outdoor cable gland for use with all types of unarmoured cable, providing mechanical cable retention and an environmental seal on the cable outer sheath.
Key Features
A1/A2 series is a single seal industrial cable gland to be used with all types
of unarmoured and braided cables. The seal is displacement type, providing
mechanical cable retention and electrical continuity. The outer environmental
seal holds the cable thus controlling the load on the outer shell and provides
ingress protection rating of IP66.
Design Standard: BS 6121: Part1:1989, BS EN IEC 62444
Usage: Indoor and outdoor applications
Entry Threads: M20 to M90
Standard Gland Material: Brass & Brass Nickel Plated
Operating Temperature: -20°C to +90°C
Accessories: Locknut, Earth Tag, IP Washer & Shroud
- Suitable For Unarmoured Cables
- Suitable For Braided Cables
- Available In Kit Form
- Optional Threads - NPT, BSP & PG
- Optional Gland Material - Al & SS
- Optional - LSF Kit

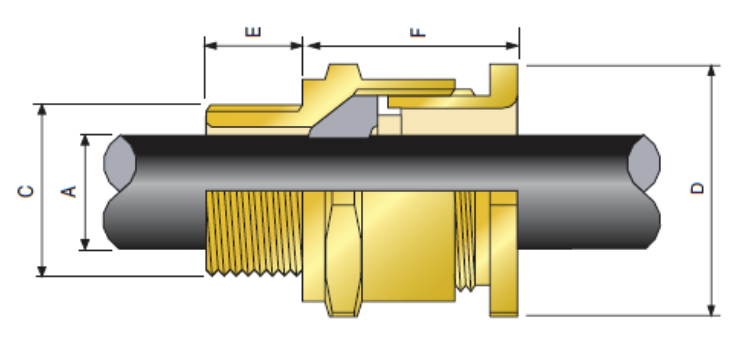

Technical Illustration
Product Selection Table
| Article # | Gland Size | Std. Entry Thread Size 'C' | Minimum Thread Length 'E' | Overall Cable Diameter 'A' | Across Flats 'D' | Across Corners | Protrusion Length 'F' Approx. | |
|---|---|---|---|---|---|---|---|---|
| Min. | Max. | |||||||
| YK-A1/A2-20S | 20S | M20 | 10.00 | 8.00 | 11.50 | 22.00 | 24.50 | 21.00 |
| YK-A1/A2-20L | 20L | M20 | 10.00 | 11.00 | 13.50 | 26.00 | 28.50 | 24.00 |
| YK-A1/A2-25S | 25S | M25 | 10.00 | 13.00 | 16.50 | 30.00 | 33.00 | 26.00 |
| YK-A1/A2-25L | 25L | M25 | 10.00 | 16.00 | 19.50 | 34.00 | 37.00 | 26.00 |
| YK-A1/A2-32L | 32L | M32 | 10.00 | 19.00 | 25.50 | 41.00 | 45.50 | 27.00 |
| YK-A1/A2-40S | 40S | M40 | 15.00 | 23.00 | 29.00 | 50.00 | 55.00 | 28.00 |
| YK-A1/A2-40L | 40L | M40 | 15.00 | 25.00 | 32.00 | 50.00 | 55.00 | 28.00 |
| YK-A1/A2-50S | 50S | M50 | 15.00 | 31.50 | 37.00 | 55.00 | 60.50 | 29.00 |
| YK-A1/A2-50L | 50L | M50 | 15.00 | 36.50 | 43.00 | 59.50 | 67.00 | 30.00 |
| YK-A1/A2-63S | 63S | M63 | 15.00 | 42.50 | 50.00 | 69.00 | 77.50 | 30.00 |
| YK-A1/A2-63L | 63L | M63 | 15.00 | 49.50 | 55.00 | 74.00 | 80.00 | 30.00 |
| YK-A1/A2-75S | 75S | M75 | 15.00 | 54.50 | 61.00 | 81.50 | 90.50 | 32.00 |
| YK-A1/A2-75L | 75L | M75 | 15.00 | 60.50 | 67.00 | 84.00 | 94.00 | 32.00 |
| YK-A1/A2-90L | 90L | M90 | 20.00 | 65.00 | 78.00 | 101.50 | 114.00 | 44.00 |
Applications
- General Enclosures
- Industrial Equipment's
- Instrumentation & Automation
- Earth Cable
